	MOTORS & GEARMOTORS BLOWERS PUMPS PUMPS & COMPRESSORS PRESSURIZED TANKS OIL-LESS COMPRESSORS & VACUUM PUMPS VALUE ADDED ASSEMBLIES & CONTRACT MANUFACTURING CUSTOM ASSEMBLIES & STANDARD PRODUCTS COFFEE GRINDERS FOR OEM’S SOLAR TECHNOLOGY SOLAR DC BRUSHLESS WATER PUMPS

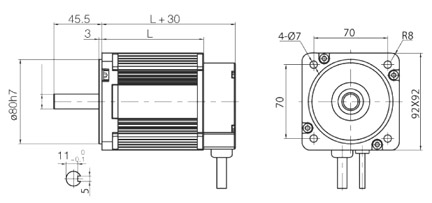

		Make your switch to high efficiency, long life BLDC Motors and Gear Motors. Available output power from 5 watts to 1,500 watts with and without controllers.

	Motor diameter from 28mm to 145mm - Input voltages from 12VDC to 350VDC - Power rating of 5w to 1,500w - Speed range from 100rpm to 20,000rpm - Sensor and sensor less designs - Internal and external motor controls -




		Download Spec Sheet


	Induction Motors & Gearmotors

- Output power ratings from 6 to 200 watts.
- Single or three phase with standard voltages of 115V 50/60Hz and 230V 50/60Hz.
- State of the art design: Cast aluminum alloy housings, high grade ball bearings,
balanced rotors, and precision machined shafts.
- Assorted models: Reversible motors, electromagnetic brakes, terminal boxes,
speed controllers and electronic brakes.
- Impedance and thermally protected.
- Agency approvals: UL, CSA, CE and RoHS.
- Customer requested modifications welcome.

Precision cast aluminum alloy housings with all ball bearing construction. -
Gear case sizes between 60mm and 90mm. -
Wide range of gear reduction from 3:1 to 200:1. -
Decimal index case allows for additional 10:1 ratio added to any gear case/motor combination. -
Modular design: Mix and match motors and geared cases. -
Gear cases rated up to 300 kg-cm operating torque and 40kg of overhung load. -
Modern manufacturing plants and quality driven processes assure extremely quiet operation. -
Special output shaft configurations available. -


	PMDC Motors & Gearmotors

	- Micro-motors from 12 to 48mm diameter with flat, round and square type housings. - Standard PMDC motor sizes from 060 to 090mm diameter with cast aluminum housings. - Precision spur/pinion and planetary gear housings. - Special shaft configurations, lead assemblies and other value added options available. - Factory stock of a wide range of micro - DC motors and gearmotors.

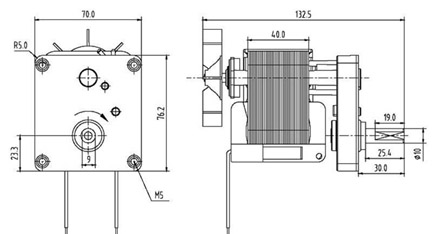

			Shaded Pole Gearmotors

	Die-cast aluminum alloy gear case housings and covers. - Spur/pinion and helical gearing machined on state of the art CNC hobbing machines. - Precision design and through process controls produce quiet and durable gearmotors. - Electromagnetic and friction brakes available. - Special shaft configurations, lead assemblies and other value added options offered. - UL, CSA, CE mark, RoHS. -


		Micro PMDC Motors

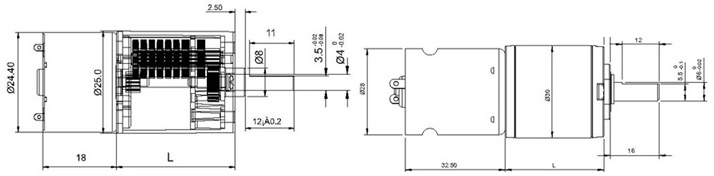

	Planetary Gearmotors


		Pellet & Bio-fuel Stove Auger Drive Specifications

		- Aluminum alloy gear cases with (4) #10-32unc tapped mounting holes. - Standard no load speeds of 1.1, 1.3, 1.5, 2.0 and 4.1rpm. - Break-down torque over 220 inch-lbs. on lower speed models. - 3/8” diameter, 1” long output shaft with machined flat. - 115V 60Hz and 230V/50Hz Class B impedance protected motors. - Lubricants designed for high temperatures and continuous duty. - UL, CSA.and CE - Options include integral lead assemblies, positive stop brakes and custom output shafts.
